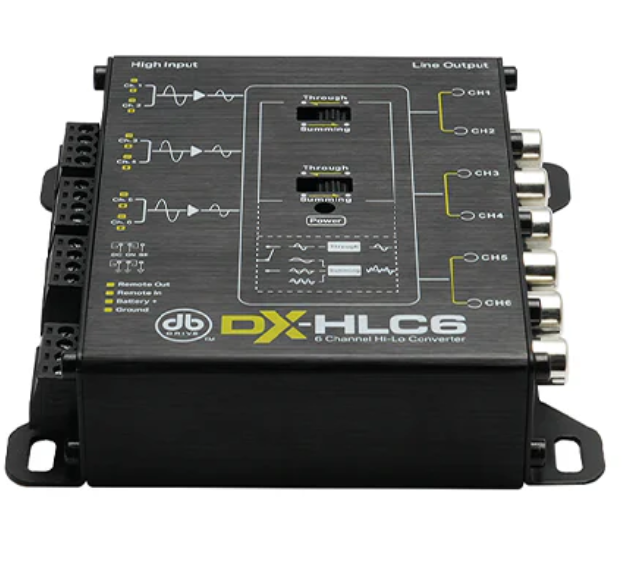

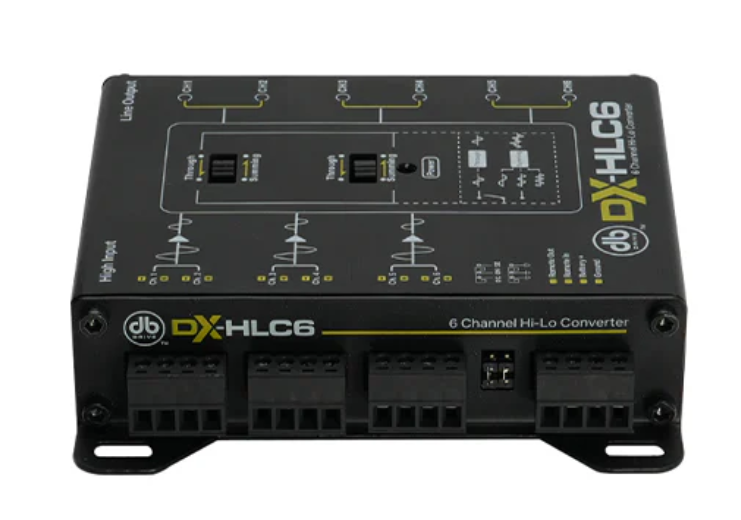

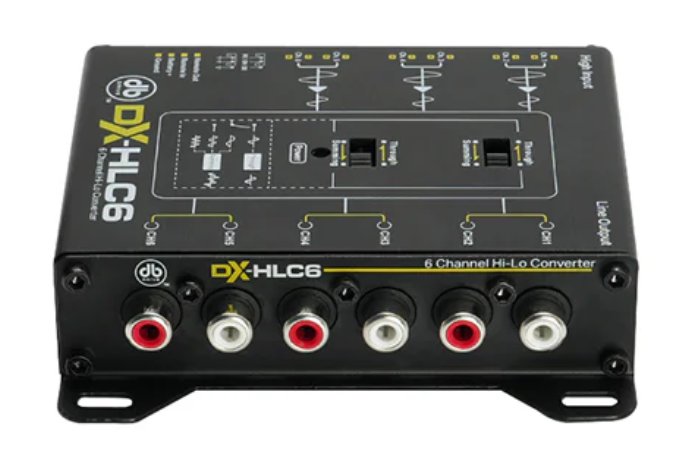

DBLink DX-HLC6 6 Channel High Low Converter with Summing
$99.99
Currently sold out — back soon
Part # DX-HLC6
Not sure this fits your car? Send us an email at
Info@FDMCarAudio.com
6 Channel Hi - Low Level Converter w Summing Capability
- 6 Channel speaker level inputs
- 6 - low level RCA output channels
- selectable summing input switches
- Signal Sensing remote turn on
- Variable level Matching output gains
- Built-in OEM load compatible
- 12 Volt -DC Remote Trigger Output
- Operating Voltage: 8-16V
- Current Draw: 100mA
- Input Impedance: 1 Ω
- Output Voltage: 8.5V
- Channel Separation: >65dB
- Output T.H.D.: 0.01%
- S/N: >100dB
- REM Output Current: 12V>100mA
- Frequency Response (+/-1dB): 10Hz-20KHz
- Input Sensitivity: 2-30V
