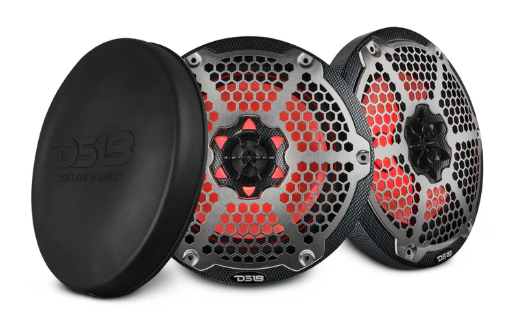

DS18 CF-65M Marine / ATV 6.5" Speakers with LED Lights

SPECS

SKU
CF-65M
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91dB
Frequency Response
45Hz-23KHz
Recommended HI Pass Crossover
65 Hz

Body / Features

UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated
Grill Type
Injection Molded Composite (ASA) with 316 Stainless Steel mesh
Pair
Yes
Color / Finish
Carbon Fiber Texture / Gloss

Woofer Specifications

Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite (ASA) with UV Protection coating
Magnet Material
Ferrite (Y35) + Neodymium (N35)
Magnet Weight
14oz+0.32oz

Tweeter Specifications

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEI
Magnet Material
NEODYMIUM(N38H)
Magnet Weight
0.54oz

Thiele & Small Parameters

Equivalent Volume Vas
20L / 0.708ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
75Hz
Mechanical Factor Qms
7.823
Electrical Factor Qes
1.057
Total Factor Qts
0.931
Moving Mass Mms
4.122g
Compliance Cms
1.081mm/N
Bl Factor Bl
2.41
Voice Coil Inductance Le
0.543mH
Cone Area Sd
114.99cm2
DC Resistance Re
3.14 ohms
Efficiency Bandwidth Product EBP
70.9

Speaker Measurement

Overall Diameter
6.94" / 176mm
Overall Depth
3.72" / 94.4mm
Front Mount Baffle Cutout
5.31" / 135mm
Mounting Depth
2.5" / 63.5mm
Motor Diameter
3.54" / 90mm
