DS18

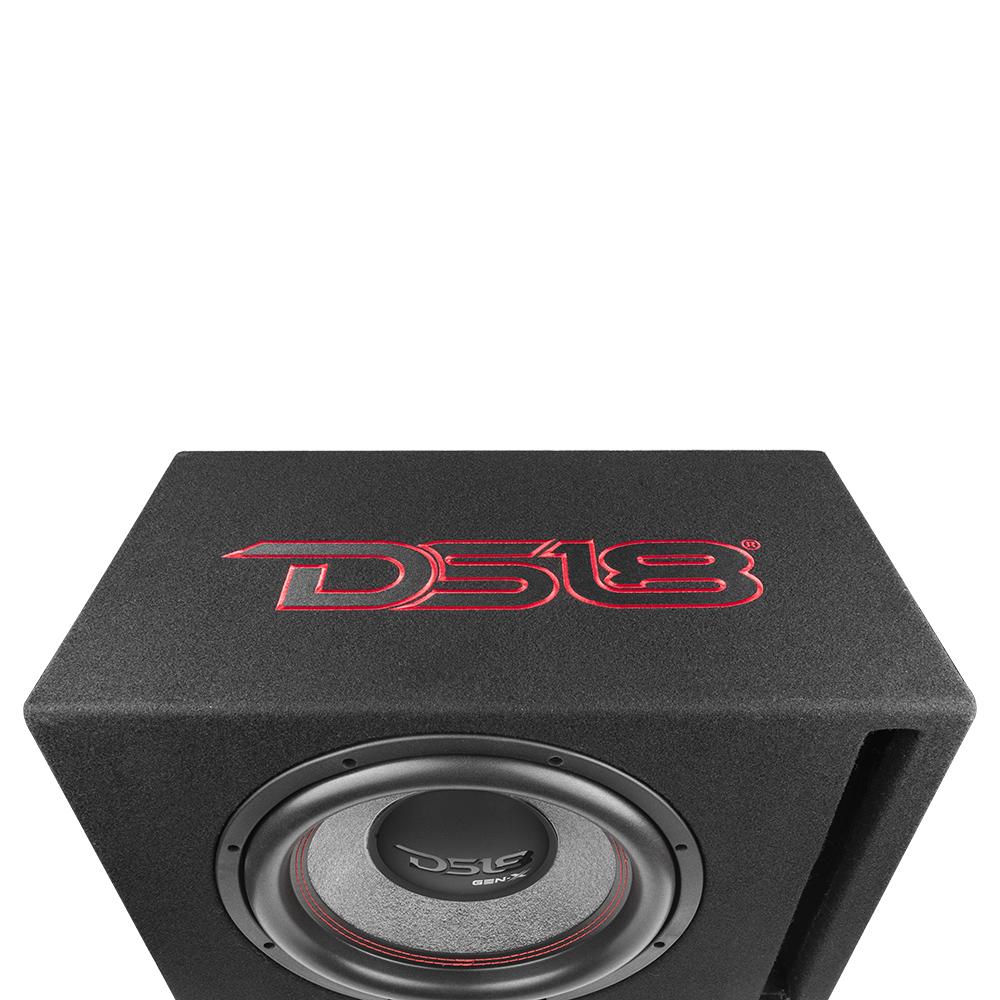

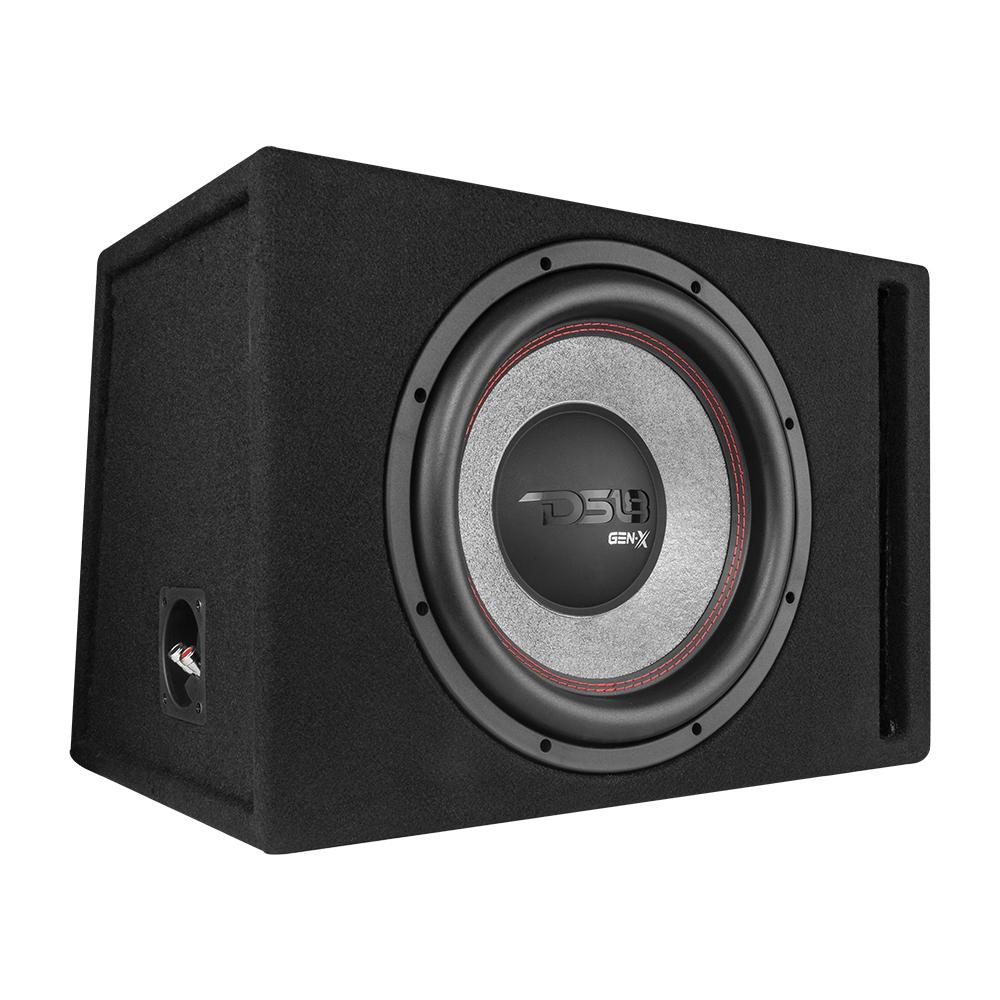

DS18 GEN-X112LD Loaded Single 12" Vented Box
DS18 GEN-X112LD Loaded Single 12" Vented Box
SKU:GEN-X112LD
Couldn't load pickup availability
DS18 Loaded Ported 12" Box with GEN-X124D Subwoofer
- Gen-X Subwoofer Enclosure
- 1 X 12" GEN-X124D
- RMS Power: 450 Watts(900 Watts Peak)
- Impedance: 2 Ohm ~ 91dB
- 1/2" MDF with Black Carpet
- 35 HZ Ported Box
- Non-amplified (does not have built-in amp)
SPECS
SKU
GEN-X112LD
Speaker Type / Size
Single 12" Subwoofer (GEN-X124D)
Total Impedance
2 Ohm
Total RMS Power Handling
450W
Total MAX Power Handling
900W
Sensitivity (1w/1m)
91dB
Frequency Response
25 - 250Hz
Recommended Lo Pass Crossover
120Hz
Speaker Specifications
Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Paper & Fiber Glass
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
70 Oz
Box Specifications
Internal Volume
45.3L / 1.6ft3
Port Tune (Fb)
35Hz
Load Configuration
Parallel
Box Type
Front Ported
Box Material
1/2" / 15mm MDF
Finish Material
Black Carpet
-3Db Dropping Point (F3)
29Hz
Measurement
Height
13.78" / 350mm
Width
19.68" / 500mm
Depth 1
11" / 280mm
Depth 2
14" / 356mm
Gross Single Unit Weight (lb)
40
