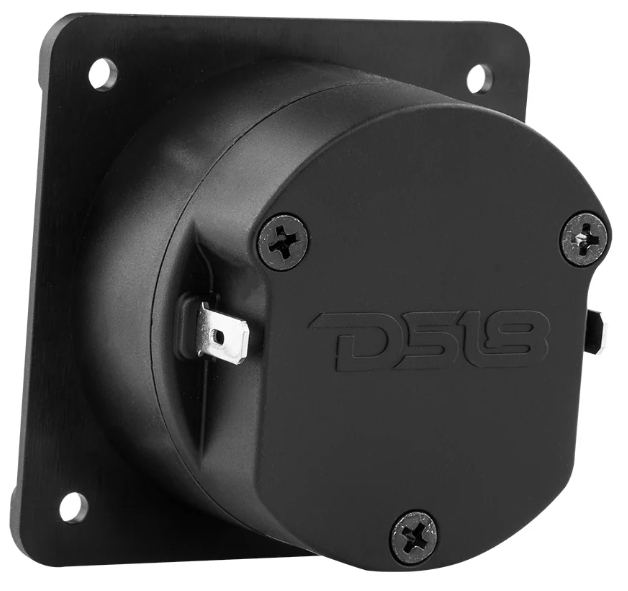

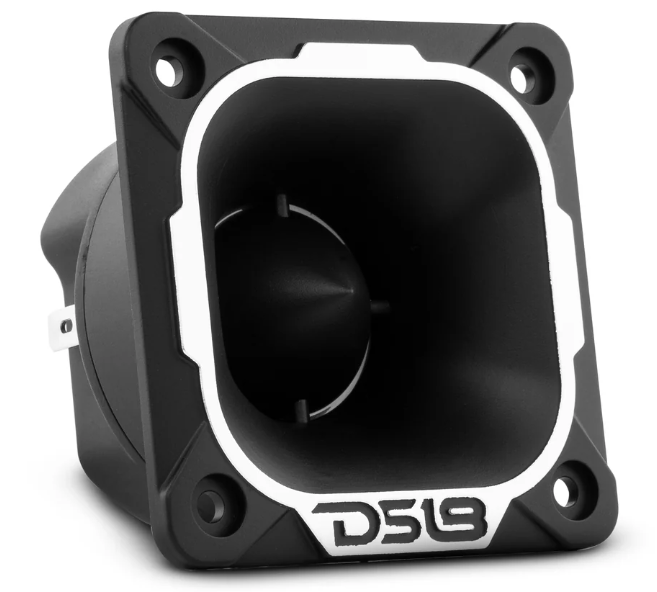

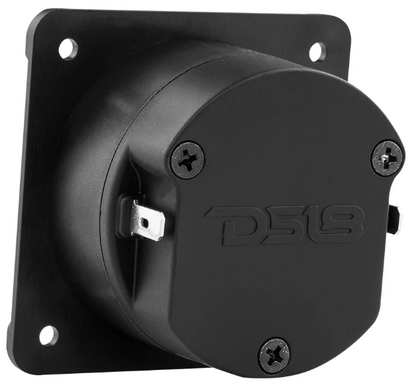

DS18 PRO-TWN3 2.5" High Compression Neodymium Tweeter

DS18

DS18 PRO-TWN3 2.5" High Compression Neodymium Tweeter

Name: DS18 PRO-TWN3 2.5" High Compression Neodymium Tweeter
Brand: DS18
SKU: PRO-TWN3
Price: 39.95 USD
Availability: InStock

$39.95

In stock and ready to ship Part # PRO-TWN3

Not sure this fits your car? Send us an email at Info@FDMCarAudio.com

Sold individually

2.5" High Compression Tweeter
RMS Power: 100 Watts(200 Watts Peak)
Impedance: 4 Ohm ~ 107dB
Neodymium Magnet
Flush Style Mount

SPECS

SKU
PRO-TWN3
Nominal Diameter
2.5" / 63mm
Nominal Impedance
4 Ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
107 dB
Frequency Response
1.6 KHz - 20 KHz
Recommended Hi Pass Crossover
2 KHz
Pair or Single
Single
Filter Included
Yes 2.2 uf

MOTOR

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEN
Magnet Material
Neodymium
Magnet Weight
0.57 oz
Body Material
PC

MEASUREMENTS

Overall Diameter
2.48 X 2.48" / 63 x 63 mm
Overall Depth
1.49" / 32.8 mm
Front Mount Baffle Cutout
2.12" / 54mm
Mounting Depth
1.32" / 33.5mm
Product Weight
0.34 lbs
Product Dimensions
3.1875 x 2.75 x 2

DS18 PRO-TWN3 2.5" High Compression Neodymium Tweeter
