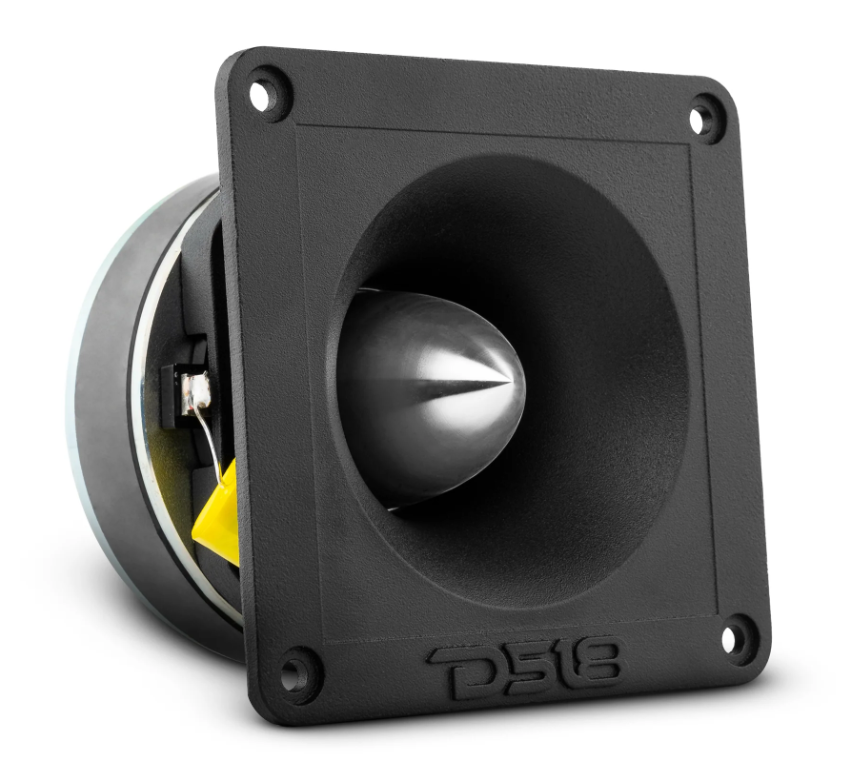

DS18 PRO-TWX6 Super Bullet Tweeter 4" x 4"

Name: DS18 PRO-TWX6 Super Bullet Tweeter 4" x 4"
Brand: DS18
SKU: PRO-TWX6
Price: 54.95 USD
Availability: OutOfStock

$54.95

Currently sold out — back soon Part # PRO-TWX6

Not sure this fits your car? Send us an email at Info@FDMCarAudio.com

Sold individually

4" X 4" Super Bullet Tweeter
MAX Power: 480 Watts
RMS Power: 240 Watts
Impedance: 8 Ohm ~ 112dB
Ferrite Magnet

SPECS

Nominal Diameter
4" x 4" / 102 x 102mm
Nominal Impedance
8 Ohm
AES Power Handling
120W
Program Power Handling
240W
Peak Power Handling
480W
Sensitivity (1w/1m)
112 dB
Frequency Response
1.7K-20KHz
Recommended Hi Pass Crossover
2.5KHz

BODY / FEATURES

Filter (Bass Blocker)
N/A
Body Material
Aluminum
Body Color / Finish
Black
Faceplate Color / Finish
Black
Bullet Material
Aluminum

MOTOR

Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
Kapton
Winding Material
SV
Diaphragm Material
Titanium
Magnet Material
Ferrite
Magnet Weight
15 Oz

MEASUREMENT

Overall Diameter
4" x 4" / 102 x 102mm
Overall Depth
2.7" / 69mm
Front Mount Baffle Cutout
3.62" / 92mm
Mounting Depth
2.5" / 65mm
Motor Diameter
3.5" / 90mm
Single Unit Weight (lb)
3
