DS18

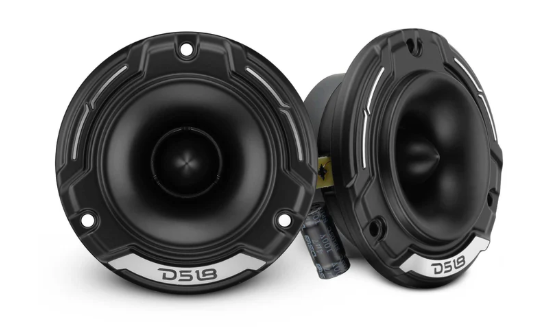

DS18 PRO-TWZ1S Shallow Mount Super Bullet Tweeters

Name: DS18 PRO-TWZ1S Shallow Mount Super Bullet Tweeters
Brand: DS18
SKU: PRO-TWZ1S
Price: 39.95 USD
Availability: InStock

$39.95

In stock and ready to ship Part # PRO-TWZ1S

Not sure this fits your car? Send us an email at Info@FDMCarAudio.com

PRO-TWZ1S

Sold in pairs
Ultra-Shallow 1.3" Mounting Depth
3.8" Diameter
Razor-Sharp Highs (3.15kHz–20kHz)
1" Aluminum Voice Coil + Diaphragm
Built-In 4.7µF Bass Blocker
Competition-Ready SPL Output

Specifications

Nominal Impedance
4 Ohms
AES Power Handling
50W
Program Power Handling
100W
Peak Power Handling
200W
Sensitivity (1w/1m)
105 dB
Frequency Response
3.15KHz-20kHz
Recommended High-Pass Crossover
4kHz

Body / Features

Filter (Bass Blocker)
4.7uf
Body Material
Aluminum
Body Color / Finish
Black
Faceplate Color / Finish
Black / Machined
Bullet Material
Aluminum

Motor

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
6.5 Oz

Measurement

Overall Diameter
3.78" / 96mm
Overall Depth
1.8" / 45.5mm
Front Mount Baffle Cutout
2.83" / 72mm
Mounting Depth
1.3" / 35mm
Motor Diameter
2.76" / 70mm

DS18 PRO-TWZ1S Shallow Mount Super Bullet Tweeters
