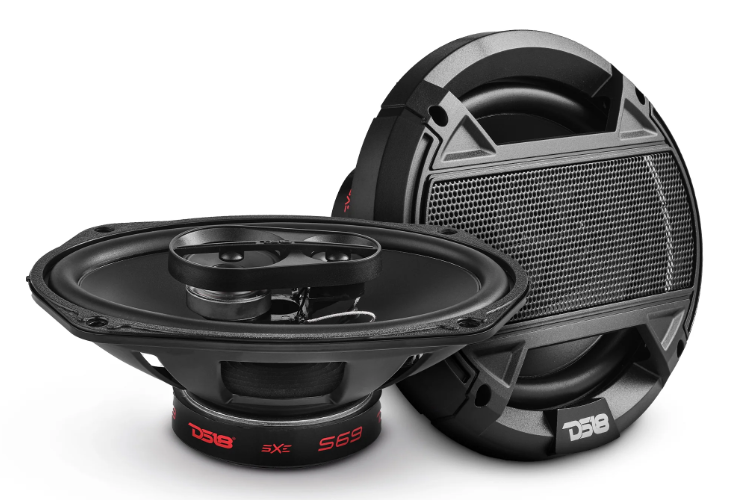

DS18 S69 3-Way 6x9" Coax Speakers

Woofer Specifications

Voice Coil Diameter
1" / 25.5mm
Voice Coil Former Material
ASV
Winding Material
EISV
Cone Material
PPI
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Barium Ferrite
Magnet Weight
15.7Oz / 445g

Thiele & Small Parameters

Equivalent Volume Vas
15.9L / 0.56ft3
Excursion (one way) Xmax
3.3mm
Free Air Resonance Fs
61Hz
Mechanical Factor Qms
4.86
Electrical Factor Qes
1.79
Total Factor Qts
1.31
Mechanical Mass Mms
24g
Mechanical Compliance Cms
238mm/N
BL Factor BL
5.2
Voice Coil Inductance Le
199uH
Cone Area Sd
217cm2
DC Resistance Re
3.4 Ohms
Mechanical Mass w/o air Mmd
20.5g

Tweeter Specifications

Nominal Diameter
Tw1: 2.3" / 59mm Tw2: 1.1" / 29mm
Voice Coil Diameter
Tw1: 0.6" / 17mm Tw2: Piezo
Voice Coil Former Material
Tw1: PESV Tw2: N/A
Winding Material
Tw1: EISVM Tw2: N/A
Diaphragm Material
Tw1: Mylar Tw2: Mylar
Magnet Material
Tw1: Barium Ferrite Tw2: N/A
Magnet Weight
Tw1: 35g Tw2: N/A

Speaker Measurement

Overall Diameter
6.4"x9.2" / 163x234mm
Overall Depth
3.15" / 80mm
Overall Diameter (With Grill)
7.5"x10.4" / 190x264mm
Overall Depth (With Grill)
4" / 102mm
Front Mount Baffle Cutout
5.9x8.66" / 150x220mm
Mounting Depth
2.83" / 72mm
Motor Diameter
3.93" / 100mm
Tweeter Protrusion
0.6" / 16mm
Gross Single Unit Weight
1.25kg
Single Unit Box Dimensions W x L x H
275*110*390mm
