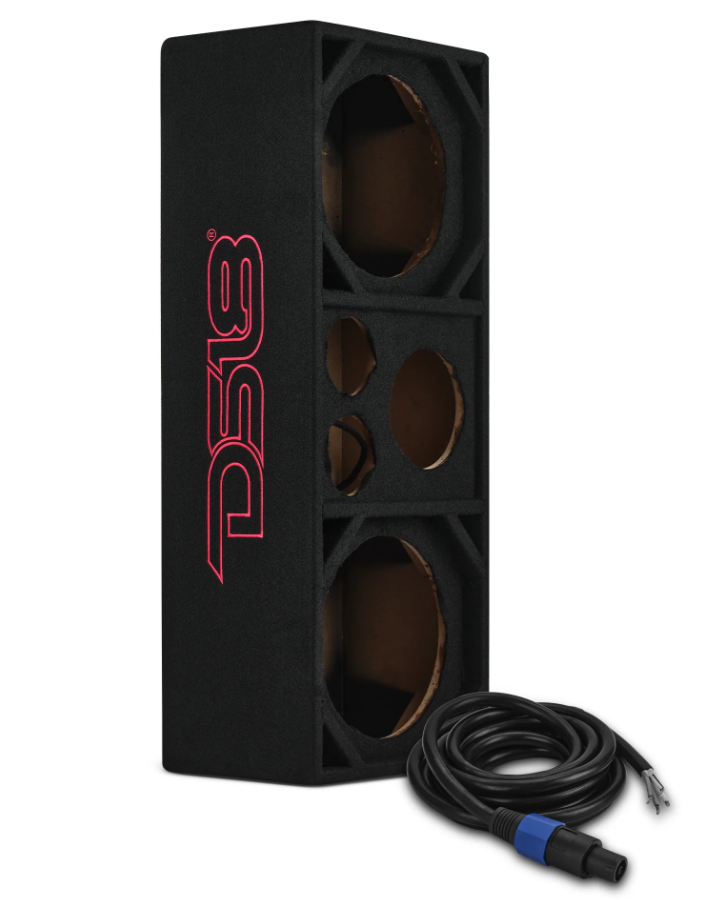

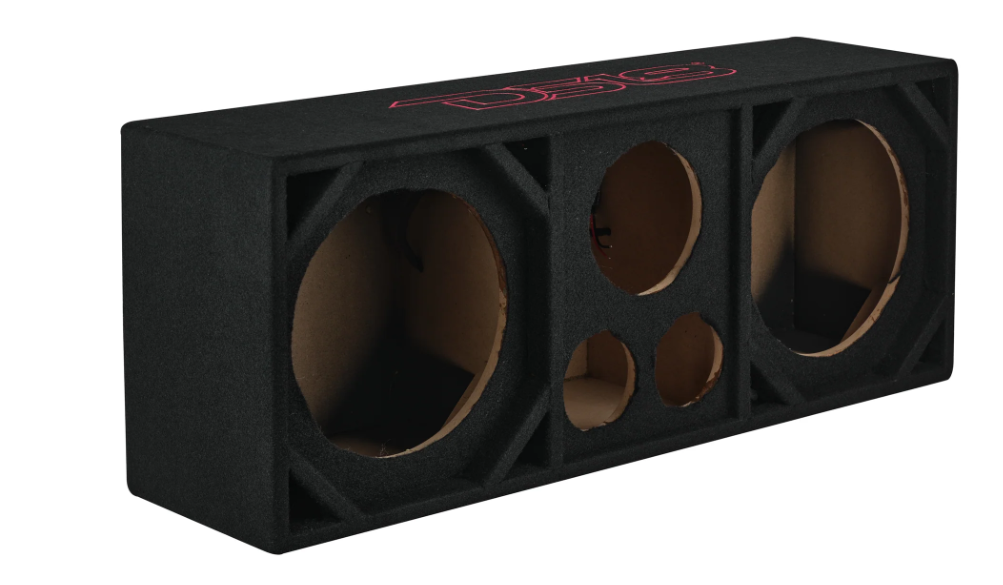

DS18 VOC10PRO Dual 10" + Dual 4" Tweeter + 2" Driver Empty Voceteo Box

Enclosure Specifications

Fits
2 x 10” Midrange Speakers (Mount Depth: 5.25”)
2 x 4” Tweeters (Mount Depth: 6.25”)
1 x 2” Driver (Mount Depth: 6.25”)
Internal Volume
41.05L / 1.45ft3
Load Configuration
WF - Parallel / TW-DR - Series/Parallel
Enclosure Type
Ported
Enclosure Material
1/2" (15mm) MDF
Finish Material
Black Carpet

Measurements

Height
33" / 830mm
Width
12.7" / 323mm
Depth
8.9" / 225mm
Speaker Front Mount Baffle Cutout
9.25" / 234mm
Speaker Mounting Depth
5.25" / 133mm
Tweeter Front Mount Baffle Cutout
3.6" / 91mm
Tweeter Mounting Depth
6.25" / 159mm
Driver Front Mount Baffle Cutout
5.7" / 145mm
Driver Mounting Depth
6.25" / 160mm

Speaker Wires

Type
Speakon (Male)
Total Length
12ft / 3.6m
Conductor Material
Copper (OFC)
Number of Conductors
4
Gauge
14 AWG
Nominal Outside Diameter
8mm
Cable Construction Type
Stranded / Multi-Twist
Shield Material / Color
PVC / Black
