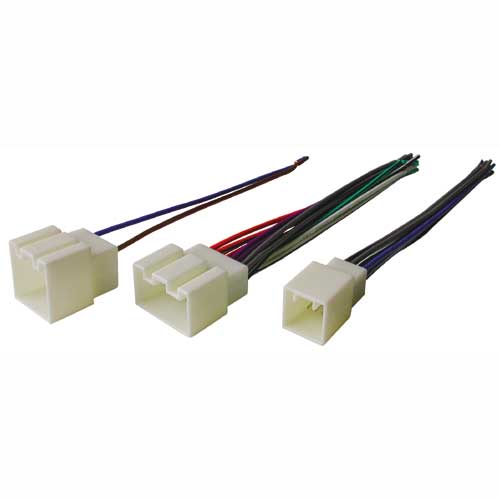

SH408 Wiring Harness Same as FD-1600 / FWH-600 / Metra 70-5700

General Features:

• Factory Reverse Wiring Harness
• Compatible with select 1998-up Ford/Lincoln/Mercury/Mazda
• Power/ 4 speakers
• Plugs into Factory Harness at radio
• Heat resistant for lasting a lifetime
• High quality ABS plastic molded connector for the perfect fit
• Pre-stripped to make installation quick and easy
• No cutting of factory wiring needed
• Same as Metra 70-5700/ Best Kits FWH-600

Connections guide:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Lt Rear Speaker (+)
• Green with Black Stripe Lt Rear Speaker (-)
• White – Lt Front Speaker (+)
• White with Black Stripe – Lt Front Speaker (-)
• Purple – Rt Rear Speaker (+)
• Purple with Black Stripe – Rt Rear Speaker (-)
• Gray – Rt Front Speaker (+)
• Gray with Black Stripe – Rt Front Speaker (-)

Compatible vehicles:

• Ford:
• 1998-2001 Crown Victoria with Mach Audio System
• 2001-2003 Escape with Mach Audio System
• 1998-2003 Explorer with Mach Audio System
• 2001-2003 Explorer Sport Trac with Mach Audio System
• 1999-2002 Expedition with Mach Audio System
• 2002-2003 Thunderbird with Mach Audio System
• 2004-2005 Ranger with Mach Audio System
• Lincoln:
• 2003 Aviator with Mach Audio System
• 1998-2002 Continental with Mach Audio System
• 2000-2003 LS with Mach Audio System
• 2002-2003 Navigator with Mach Audio System
• 1998-2001 Town Car with Mach Audio System
• Mercury:
• 1998-2003 Grand Marquis with Mach Audio System
• 1998-2003 Mountaineer with Mach Audio System

Note:

• Vehicle Compatability Chart may vary depending on vehicle options, production dates, and install application. Please inquire before purchase.
• For Use On Factory Amplified Mach Sound Systems.
• If Your Radio contains A "Dimmer" or "Illumination" Wire, Then The Orange "Illumination / Dimmer" Wire then This Harness Will Not Be Used.
• Steering Wheel Controls, speed sense, ext. may not be supported.
