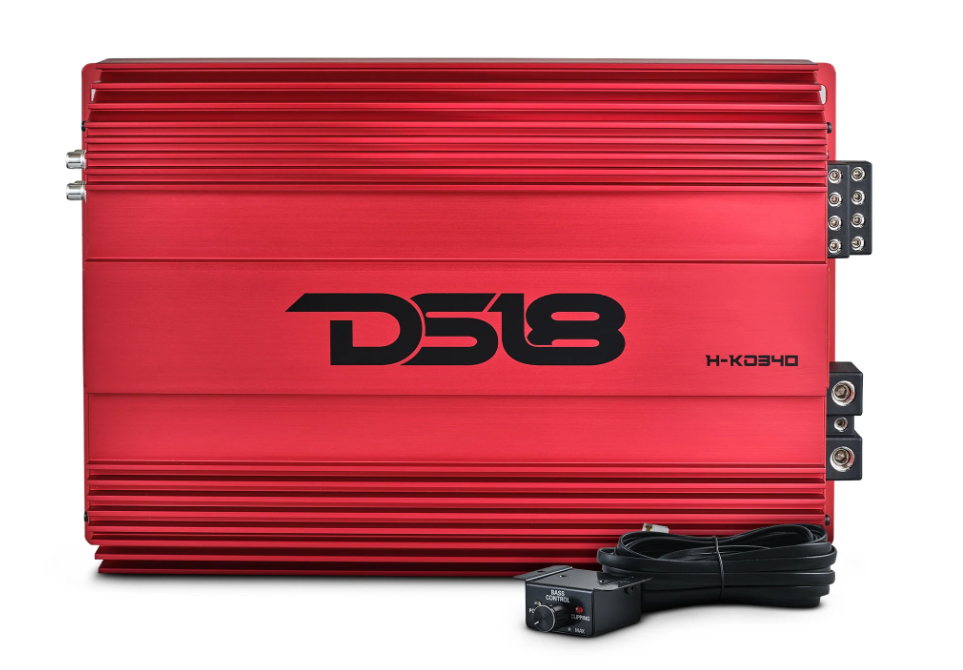

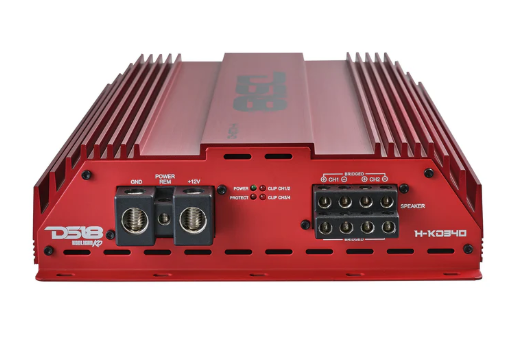

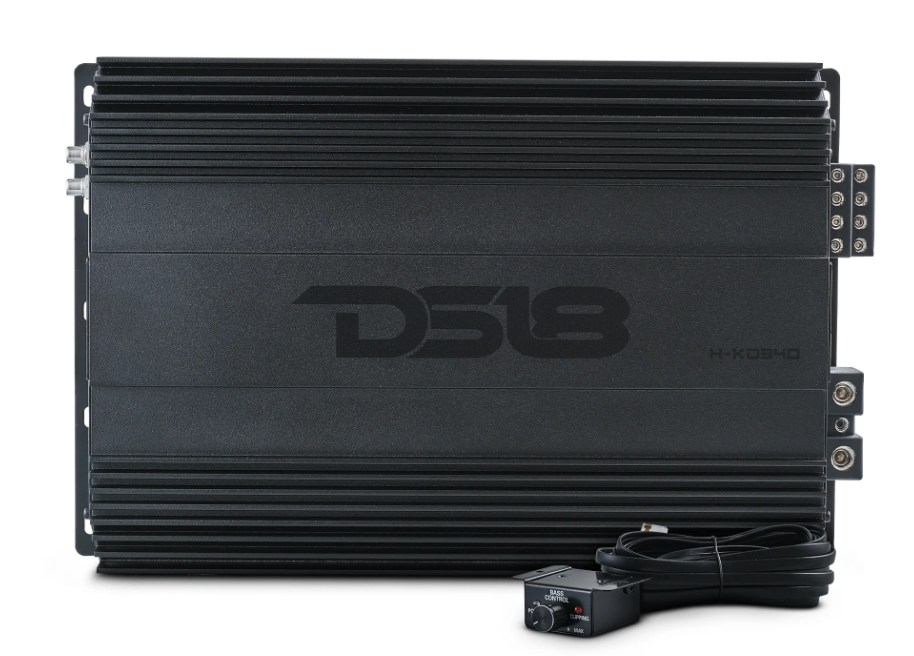

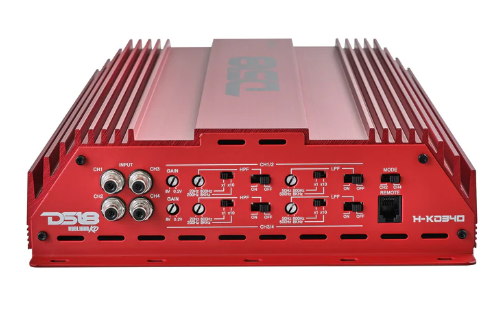

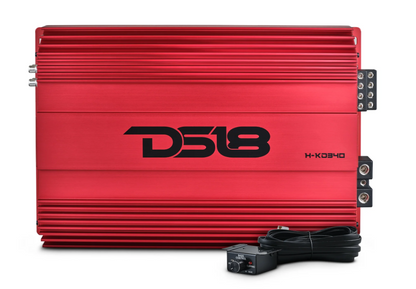

DS18 Hooligan H-KO340 Class D Full Range 4-channel Amplifier

Audio

Frequency Response
13Hz-20KHz
Signal to Noise Ratio
>90dB
Efficiency @ 4ohm
90%
Damping Factor
100
Total Harmonic Distortion (THD)
<0.2%
Low Level input Range
0.2-8V
Selectable X-Over
HPF/LPF/BAND-PASS
X-Over Filter Range
HPF: 20Hz-8KHz / LPF: 50Hz-8KHz (1X/10X)
Bass Boost Range
No
Bass Boost Frequency
N/A
Infrasonic Filter
No
Phase
No

Features

Amplifier Class
Digital (D)
Amplifier Type
Stereo Full-Range
Number of Channels
4
Minimum Impedance
2 ohm/Ch (4 ohm Bridge)
Led Indicator
Power / Protect / Clip
Power Input Terminal Size
1/0Ga
Fuse Size
200A
Remote Level Control
Yes (Metal Case)
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Cliping Protection
Yes
Body Color / Finish
Red / Black

Extra Features

X-Over Frequency Multiplier
Yes
Input Mode Selectable
Yes
LED Clipping indicator
Yes
Professional Tiffany RCA Connectors
Yes
Remote Level Knob with Clip indicator
Yes
Linkable (Strap mode) Amplifier
No
Reliable Heavy Duty Korean Board Design
Yes
Very High Efficiency Digital Circuit Design
Yes

Measurement ( mm )

Overall Lengh ( with end plate )
14.5" / 370mm
Overall Wide
9.68" / 246mm
Overall Height ( with end plate )
2.85" / 72.5mm
Heatsink Length
13.3" / 340mm
