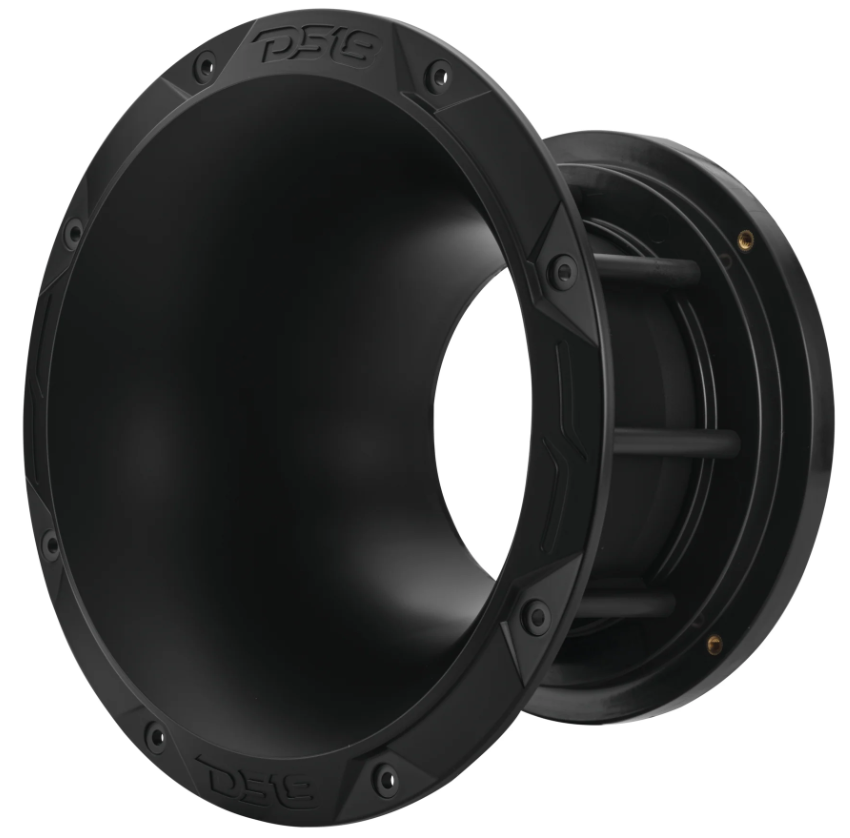

DS18 PRO-SDF6R Bolt-On Horn Diffuser for 6.5" speakers

DS18 PRO-SDF6R Bolt-On Horn Diffuser for 6.5" speakers

$54.95
$54.95
Sale Sold out
Shipping calculated at checkout.

PRO-SDF6R

PRO-SDF6R

  • Sharper Projection - Great for Line Array (LA) Speakers
  • Wide 90° Dispersion
  • Durable ABS Build
  • Bolt-On Design
  • Universal Fit for 6.5" Speakers
  • *Sold Individually*

Specifications

Nominal Speaker Diameter
6.5" / 165mm
Nominal Horn Size
8.6" / 220mm
Throat Diameter
4" / 101mm
Installation Type
Bolt-On
Sound Coverage
90°
Body Material
ABS
Color
Black Matte

Measurement

Overall Diameter
8.66" / 220mm
Overall Depth
5.2" / 132mm
Mounting Depth
4.8" / 122mm
Mounting Hole Diameter
6.8" / 175mm
Bolt Pattern (Horn)
8" / 205mm
Bolt Pattern (Speaker)
6.26" / 159mm
