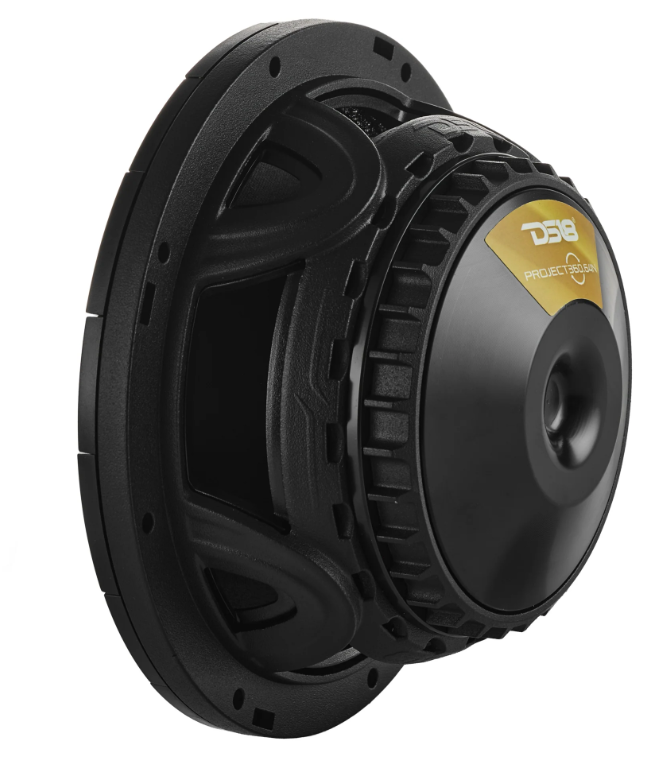

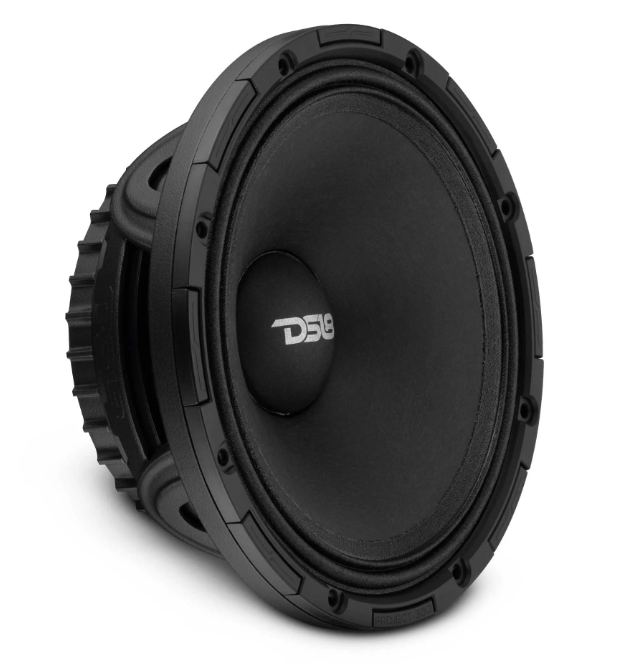

DS18 PROJECT360.64N 6.5" Loudspeaker, Neodymium Magnet, Easy Recone Design

Nominal Diameter
6.5" / 152.4mm
Nominal Impedance
4 Ohms
RMS Power Handling
350 W
MAX Power Handling
700 W
Sensitivity (1w/1m)
100.5 dB
Frequency Response
100Hz-17kHz
Recommended High-Pass Crossover
100 Hz
Sold in Pair or Single
Single
Grill Included
No
Demodulating Rings
Yes
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear
Speaker Terminals
Spade
Easy Recone Design
Yes

Motor

Voice Coil Diameter
1.75" / 44.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Paper
Surround Material
Cloth
Spider Diameter
4" / 102mm
Leads Connection Type
Round Crossed
Basket Material
Aluminum
Basket Color / Finish
Black
Magnet Material
Neodymium
Magnet Weight
12.8 oz

Thiele & Small Parameters

Equivalent Volume
2.78L / 0.098ft3
Excursion (one way)
0.3 mm
Free Air Resonance
160 Hz
Mechanical Factor
2.667
Electrical Factor
0.264
Total Factor
0.240
Moving Mass
14.523 g
Mechanical Compliance
0.063 mm/N
BL Factor
12.708
Voice Coil Inductance
0.035 mH
Cone Area
176.71 cm2
DC Resistance
3.4 Ohm

Overall Diameter
6.85" / 174mm
Overall Depth
3.27" / 83mm
Front Mount Baffle Cutout
5.83" / 148mm
Mounting Depth
2.72" / 69mm
Motor Diameter
3.94" / 100mm
