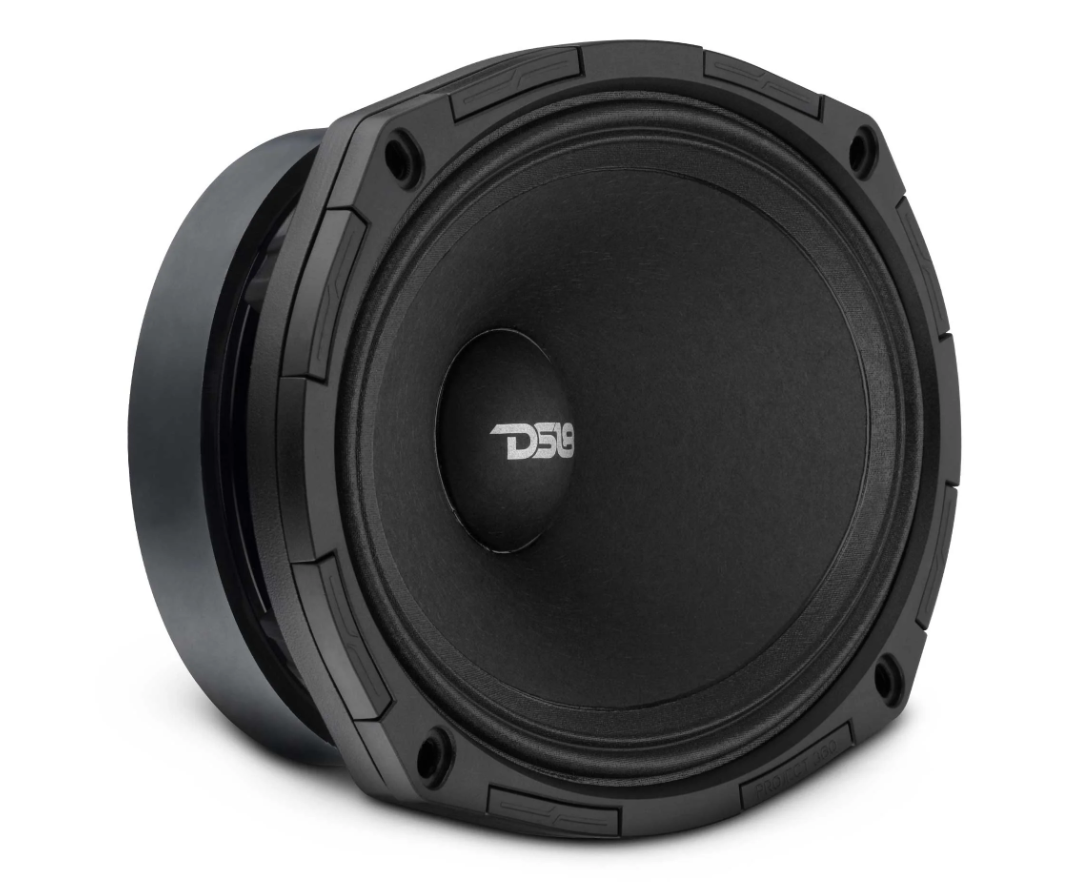

DS18 PROJECT360.694 6x9" Loudspeaker, Ferrite Magnet, Easy Recone Design

Specifications

Nominal Diameter
6X9" / 152x228mm
Nominal Impedance
4 Ohms
RMS Power Handling
300 W
MAX Power Handling
600 W
Sensitivity (1w/1m)
98 dB
Frequency Response
90Hz - 17kHz
Recommended High-Pass Crossover
140 Hz
Sold in Pair or Single
Single
Grill Included
No
Demodulating Rings
Yes
Improved Heat Dissipation
No
Cone Shape
Curvilinear

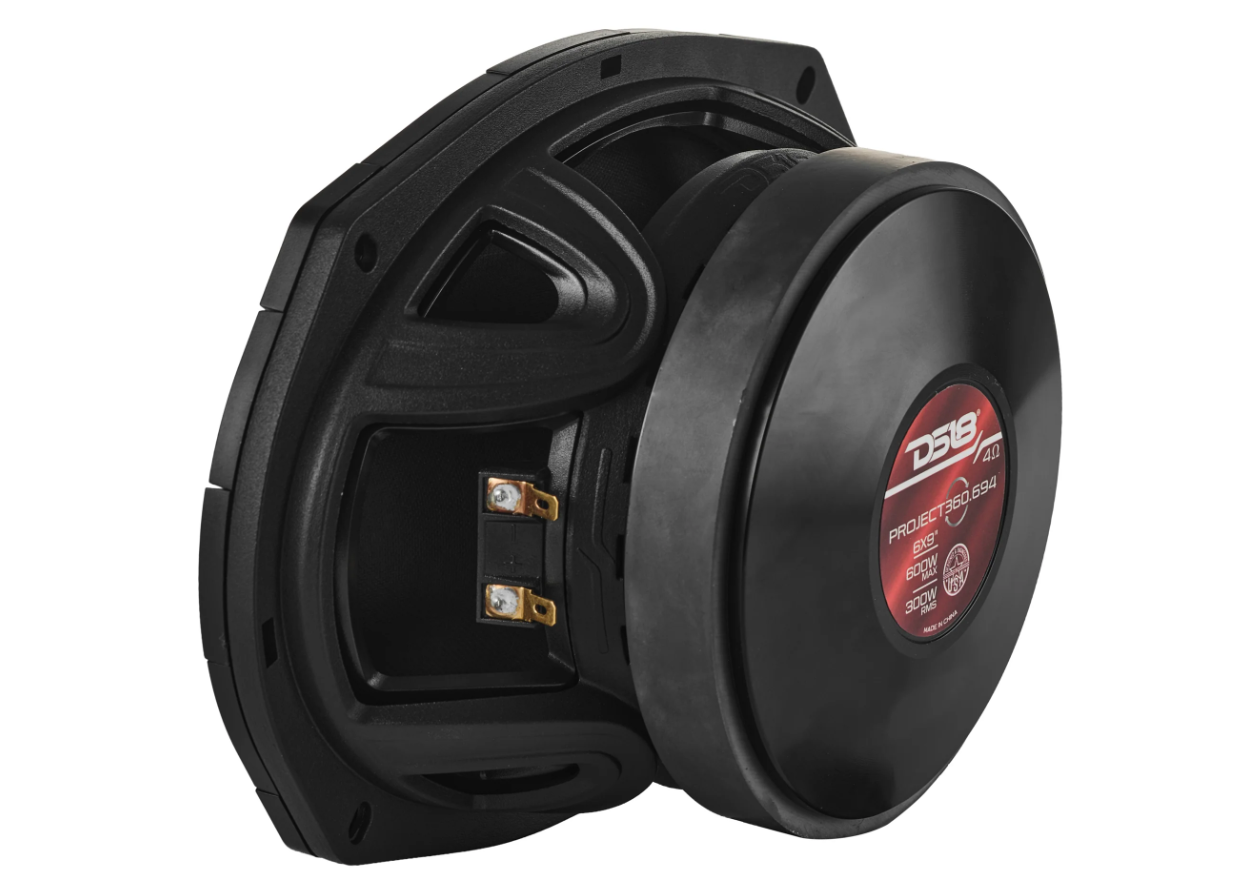

Speaker Terminals
Spade

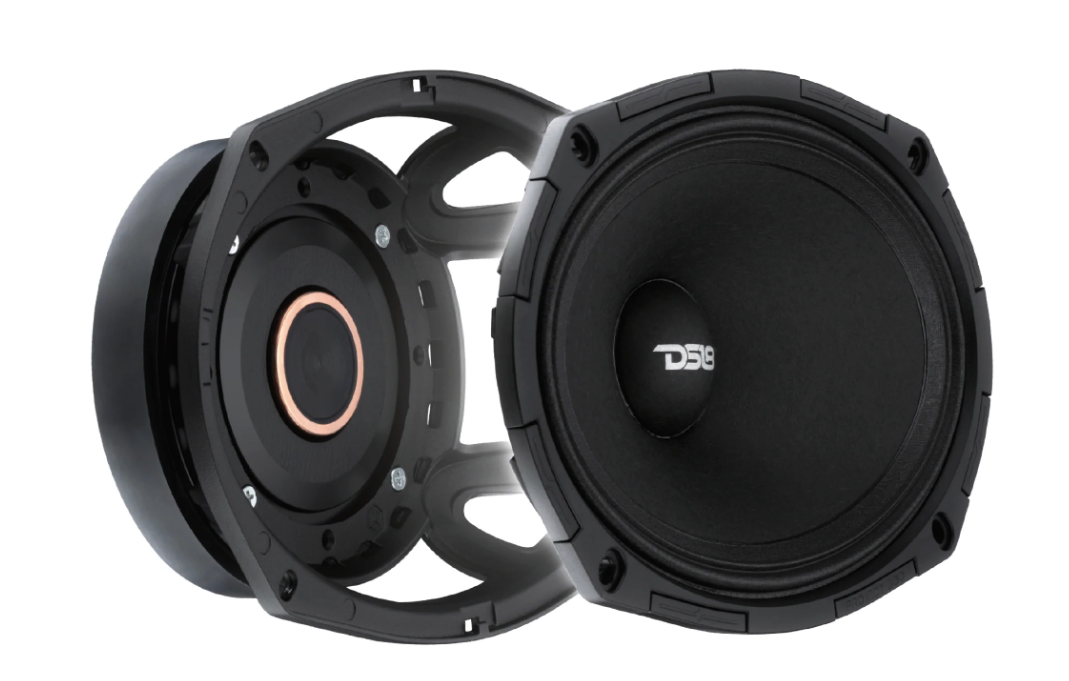

Easy Recone Design
Yes

Motor

Voice Coil Diameter
1.75" / 44.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Paper
Surround Material
Cloth
Spider Diameter
4" / 102mm
Leads Connection Type
Round Crossed
Basket Material
Aluminum
Basket Color / Finish
Black
Magnet Material
Ferrite
Magnet Weight
48 oz

Thiele & Small Parameters

Equivalent Volume
3.2L / 0.113ft3
Excursion (one way)
0.3 mm
Free Air Resonance
170 Hz
Mechanical Factor
4.147
Electrical Factor
0.730
Total Factor
0.621
Moving Mass
19.342 g
Mechanical Compliance
0.046 mm/N
BL Factor
9.204
Voice Coil Inductance
0.045 mH
Cone Area
232.35 cm2
DC Resistance
3.2 Ohms

Measurement

Overall Diameter
6.57x9.45" / 167x240mm
Overall Depth
3.9" / 99mm
Front Mount Baffle Cutout
5.9x8.8"/ 150x223mm
Mounting Depth
3.35" / 85mm
Motor Diameter
5.5" / 140mm
