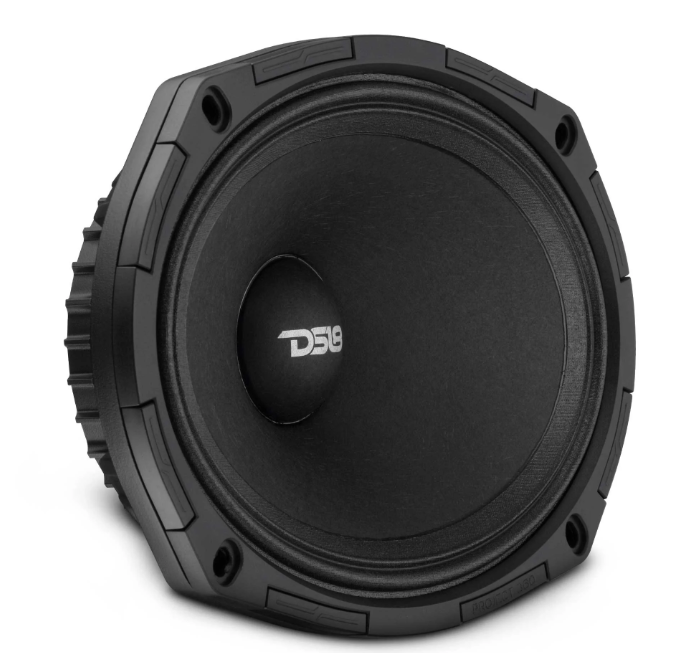

DS18 PROJECT360.694N 6x9" Loudspeaker, Neodymium Magnet, Easy Recone Design

Specifications

Nominal Diameter
6x9" / 152x228mm
Nominal Impedance
4 Ohms
RMS Power Handling
350 W
MAX Power Handling
700 W
Sensitivity (1w/1m)
101 dB
Frequency Response
95Hz-17kHz
Recommended High-Pass Crossover
90 Hz
Sold in Pair or Single
Single
Grill Included
No
Demodulating Rings
Yes
Improved Heat Dissipation
Yes
Cone Shape
Curvilinear

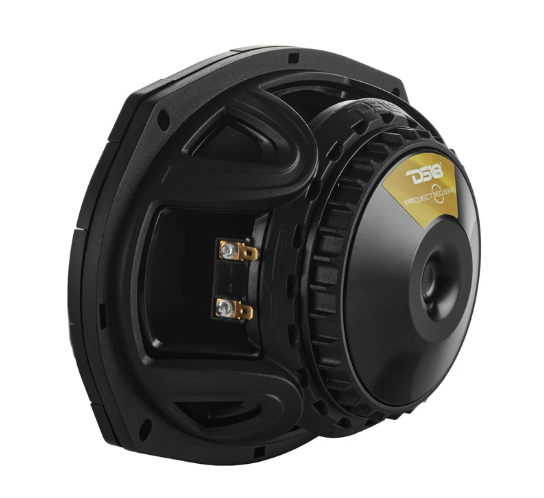

Speaker Terminals
Spade

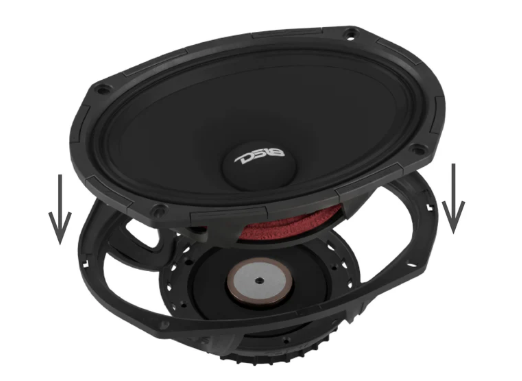

Easy Recone Design
Yes

Motor

Voice Coil Diameter
1.75" / 44.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Paper
Dust Cap Material
Paper
Surround Material
Cloth
Spider Diameter
4" / 102mm
Leads Connection Type
Round Crossed
Basket Material
Aluminum
Basket Color / Finish
Black
Magnet Material
Neodymium
Magnet Weight
12.8 oz

Thiele & Small Parameters

Equivalent Volume
3.06L / 0.108ft3
Excursion (one way)
0.3 mm
Free Air Resonance
170 Hz
Mechanical Factor
3.315
Electrical Factor
0.343
Total Factor
0.311
Moving Mass
19.198 g
Mechanical Compliance
0.041 mm/N
BL Factor
13.856
Voice Coil Inductance
0.039 mH
Cone Area
232.35 cm2
DC Resistance
3.3 Ohms

Measurement

Overall Diameter
6.57x9.45" / 167x240mm
Overall Depth
3.59" / 91.2mm
Front Mount Baffle Cutout
5.9x8.8" / 150x223mm
Mounting Depth
3" / 77.3mm
Motor Diameter
3.94" / 100mm
