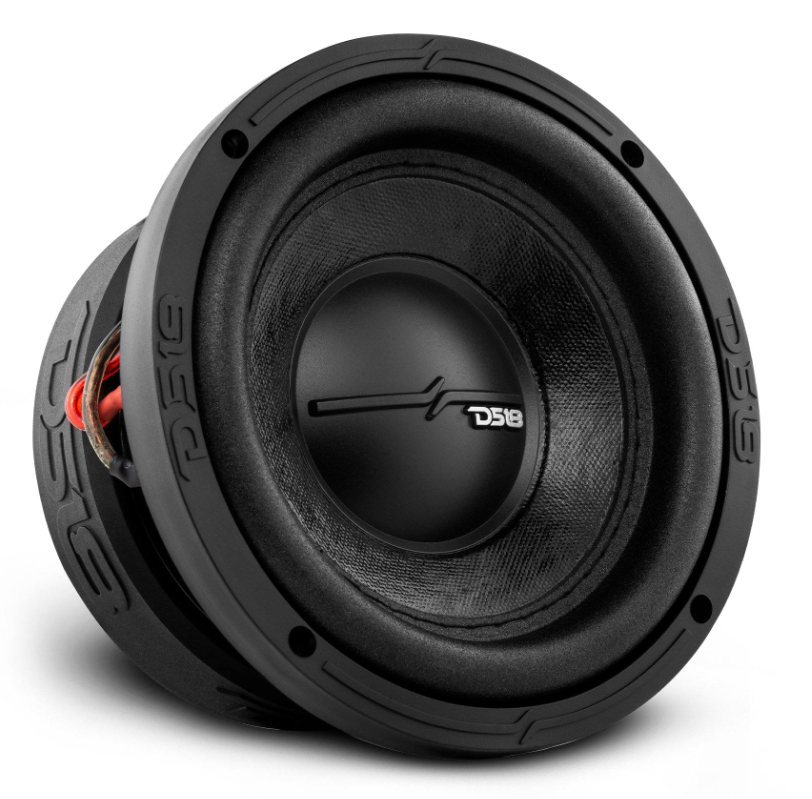

DS18 ZR6D 6.5" Subwoofer 600W Max - 2 or 4 Ohm

SKU
ZR6.2D / ZR6.4D
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
2 + 2 Ohm or 4 + 4 Ohm
RMS Power Handling
300W
Maximum Power Handling
600W
Sensitivity (1w/1m)
82 dB
Frequency Response
38-200Hz
Recommended Lo Pass Crossover
160Hz

MOTOR

Voice Coil Diameter
1.5" / 38.8mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Non-Pressed Paper
Dust Cap Material
PPI
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Black Matte
Magnet Material
Ferrite
Magnet Weight
50 Oz
Displacement Volume
0.02 ft3

MEASUREMENTS

Overall Diameter
6.75" / 171.6mm
Overall Depth
4.23" / 107.4mm
Front Mount Baffle Cutout
5.54" / 140.8mm
Mounting Depth
3.49" / 88.8mm
Motor Diameter
5.23" / 133mm
Gross Single Unit Weight (lb)
7.5
